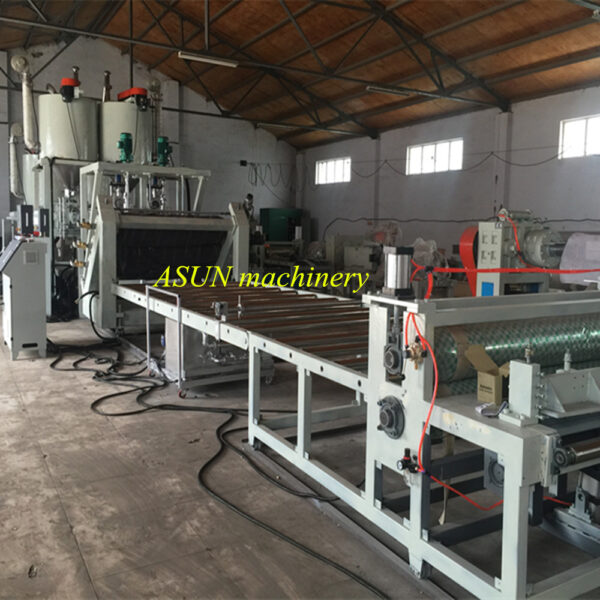

PET sheet production line

advantages

1. this libe adopts 45 degree helical 3 roller calender, add melt pump and filter to make stable flow and pressure.

2. high efficency single screw extruder with dihumidify and drying system. twin screw extruder can only use vacuum vent system.

3. PET sheet is mainly used food and tools packing, cups and containers packing.

4. this line adopts PET special screw and barrel, calender roller can reach PET required hardness.

5.melt pump and filter use PLC automatic control, to ensure stable flow and pressure.

6. adopts PET special hanger type mould, heating stable, output evenly.

7.auto meter counter, online cutting, winder is controlled by torque motor

8. we have much experiences on PET sheet machine making, has many customers in asia, middle east, europe, africa. russion countries.

main technical parameters

sheet thickness：0.15-2mm

sheet width：600-1200mm

main motor power：37-110kw

screw diameter：65-120mm

output：80-500kg/h
